型号 Model |
TW-9015SPF |

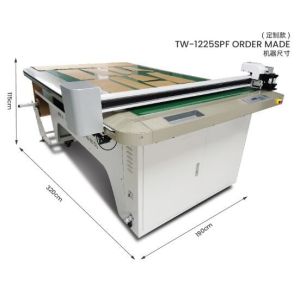

TW-1215SPF | TW-1225SPF ORDER MADE (定制款) |
| 最大切割尺寸(LxW)Max ctting(LXW) |
900*1500mm |
1200*1500mm |
1200*2500mm |
| 墨盒Ink cartridge |
HP45/HP88墨盒HP45/HP8ink cartridge |
||
| 驱动方式Drive mode |
交流伺服系统Servo motor |
||
| 切割速度Cutting speed |
1200mm/S |
||
| 打印速度Print speed |
45- 120m/h,300 600DPI |
||
| 切割厚度Cutting thick |
Print: 45-500g/mCutting 45-500g/m (More than500gram order made) |
||
| 打印介质Print media |
牛皮纸,胶片膜,红硬板纸,白纸板,纤维硬纸板等 Kraft paper, photo film .red cardboard ,white cardboard fiber cardboard. |
||
| 缓存Buffer capacity |
9100KB |
||
| 裁切刀片Cutting tools |
定制金刚刀片 Custom diamond blade |
||
| 软件兼容Software |
HP-GL/DXF,主流服装CAD格式 Garment CADfile |
||
| 输入接口input connect |
(TCP协议),串口连接,U盘存读 Network ,serial,U disk |
||
| 材质固定方式Material fixed |
高压真空吸附,泵功率1.5KW High pressure vacuum adsorption, pump power 1.5KW |
泵功率PumpPump 4.OKW |
|
| 装置系统Loading system |
后置式-体单卷/双卷(可选)装置架构 Back side loading singly oller /double oller optional |
||
| 电源,功率Power /capacity |
110/220V土10% 50/60Hz/2KW |
380V/4.5KW |
|
| 工作环境Environmental requirement |
温度1°C-35°C 湿度RH15-85% (无凝水) Temperature1°C-35°C Humidity RH15-85% (without condensation) |
||
| 机器尺寸(LXWXH) Machine side (LXWXH) |
2000×1400×980mm |
2000×1700×980mm |
3200×1900×1150mm |
| 外包装尺寸(LXWXH)Packing size(LXWxH) |
2100×1500×1150mm |
2100×1800×1150mm |
3300×2000×1250mm |
|
智能保护 Intelligent alarm |
超宽报警,超长报警,过载报警 Over-width alarm, Over length alarm, overload alarm |
||
